RACK ASSEMBLY 5304498205

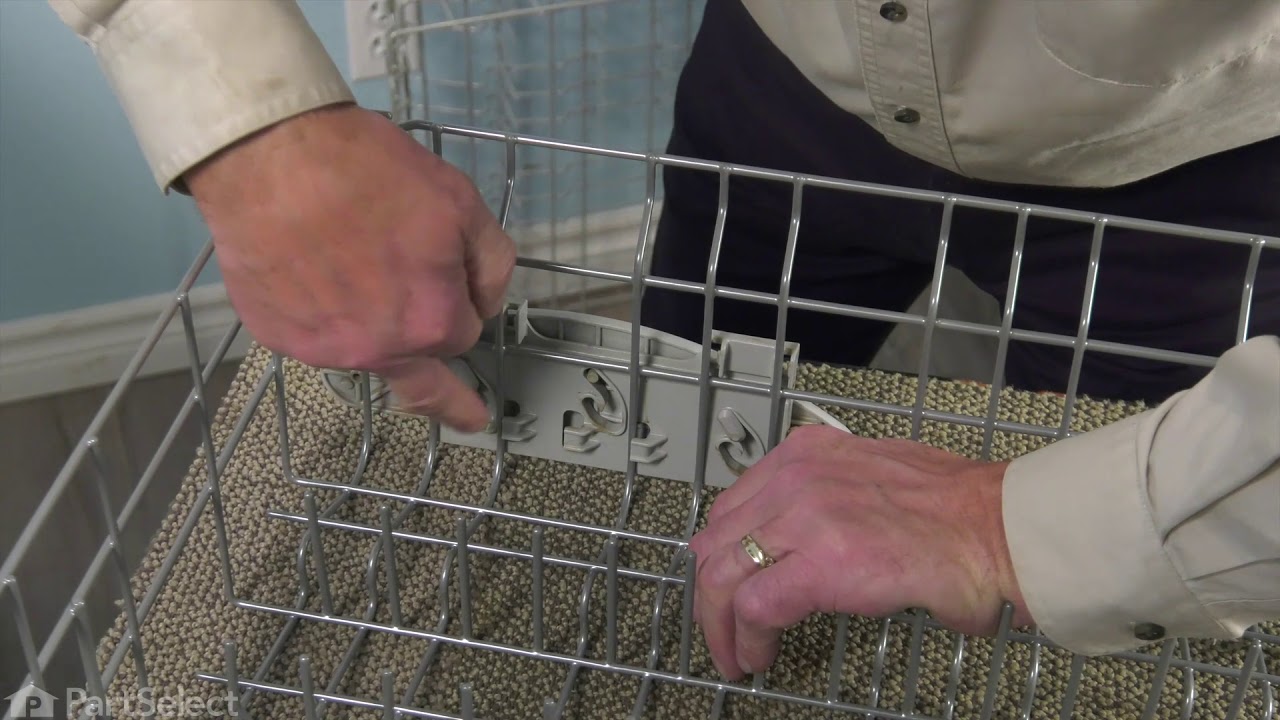

Removing the old rack was accomplished by removing the grey retainer clips located at the end of the silver rack guides. This allows the entire upper rack to slide out of the guide tracks. Unless you purchased all of the additional parts associated with the rack you must remove the needed old parts such as the spray arm, plate guides, wheel assemblies, etc. to complete the replacement and reassembly. Each of these pieces are "snapped on" by clips that are removed with moderate difficulty. Mostly due to the apprehension that you are going to break them, however, with only the pressure exerted by your fingers they will snap off and will go actually go back on easier. The order you remove and replace the various parts is your choice. The exact positioning of the parts back on the new rack is critical, so if your memory is not good, take a quick photo with your cell phone for reference. The only tool I used was a small screwdriver to separate the clip when I first removed the rack, but in retrospect I could have removed it by hand. The key thing to remember is do not apply excess force when trying to remove the old parts, just direct pressure with your fingers. Good luck, it took me only about 15 minutes from start to finish. The best part is I probably saved $150.00 by doing it myself, figuring service time for a repairman, plus his mark-up on the parts.
