PartSelect Number PS976594
This part works with the following brands: Frigidaire, Gibson, Kelvinator, Kenmore, Tappan & White-Westinghouse.
This part fixes the following symptoms:

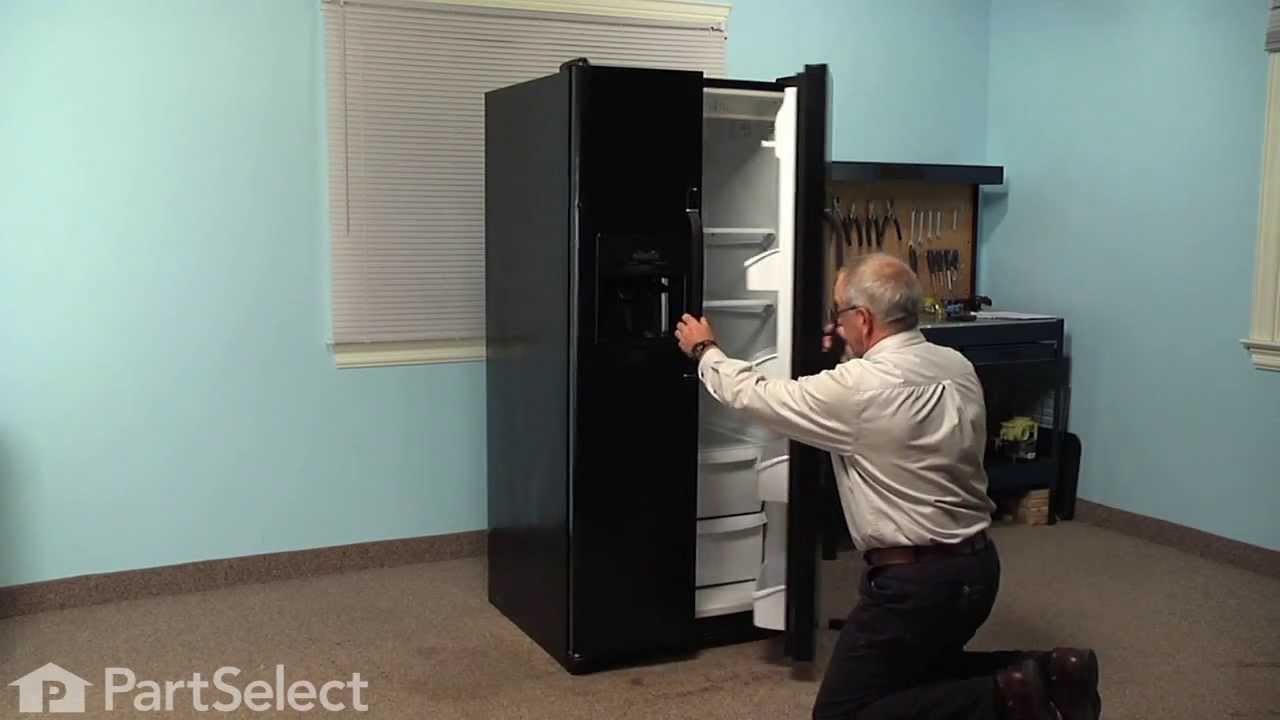

Unscrewd the top hinge cove and removed two bolts from the hinge, lifted door off of the bottom hinge and laid the whole door on the floor using a beach towel to protect it from scratches. Unbolted the bottom hinge plate, replaced it with the new one. Then pulled out the old hinge bearing and replaced with a new one. Installed the door back on the bottom hinge while the magnet on the door strip held it place and rebolted the the upper hinge and reinstalled the hinge cover. All done in less than 10 minutes. No more popping sounds when I open and close the door!
Help other customers find the most helpful instructions.
Were these instructions helpful?
The parts came within 2 days. The delivery was great. I took the food off the door, then removed the top hinge. Lifted door off bottom hinge and laid the door on a blanket on the floor. I then had access to the closing mechanism top and bottom that is just two plastic cams that lift the door as it opens. The weight of the door then is used on the cams to help close the door with the appliance level. It was very simple and assembly was just reverse order.
The biggest part of the repair was getting everything out of the shelves in the door. I had to remove one phillips head screw from the plastic hinge cover on the top of the appliance. As per the owners manual I traced around the hinge with a pencil so I would be able to align the door to the same postion. Removed two screws with a nut driver and removed the top hinge. The magnetic strip held the door in place until I grabbed it and pulled it open then lifted it up off of the bottom hinge. I layed the door on the island counter and pried the bearing hinge out of the door stop and replaced it with the new one. I probably could have stopped there but figured the plate might have been worn so I remove one phillips head screw from the bottom hinge, lifted the plate off, and replaced it with the new one. I assembled everything in reverse order and voila, no more popping noises.
First removed food from the refrigerator door.Second removed plastic cover plate and metal plate assembly from top of door.Third lifted door of metal pin on bottom.Fourth removed broken closer plate and replacedwith new closer plate.Set door back in place.Re secured the metal plate and plastic cover plate.Replaced the door shelves and food. DONE.
The noise was made due to a loose part. I took the refrigerator door off and replaced the closer plate and hinge bearing. This solved the problem.
I removed the door (2 minutes) by removing the door hinge cover (one cross-tip screw) and then loosened the tuo hinge mounting bolts. I then removed the broken bearing hinge and plate (3 minutes) from the bottom of the door and installed the bearing and plate, and then re-installed the door (2 minutes). My four-year-old helped me.
This was the easiest home repair ever!
