Compressor Start Relay

PartSelect Number PS424279

This part works with the following brands: Frigidaire, Gibson, Kelvinator, Kenmore, Tappan & White-Westinghouse.

This part fixes the following symptoms:

  • Will not start.
  • Won’t start.
  • Freezer section too warm.

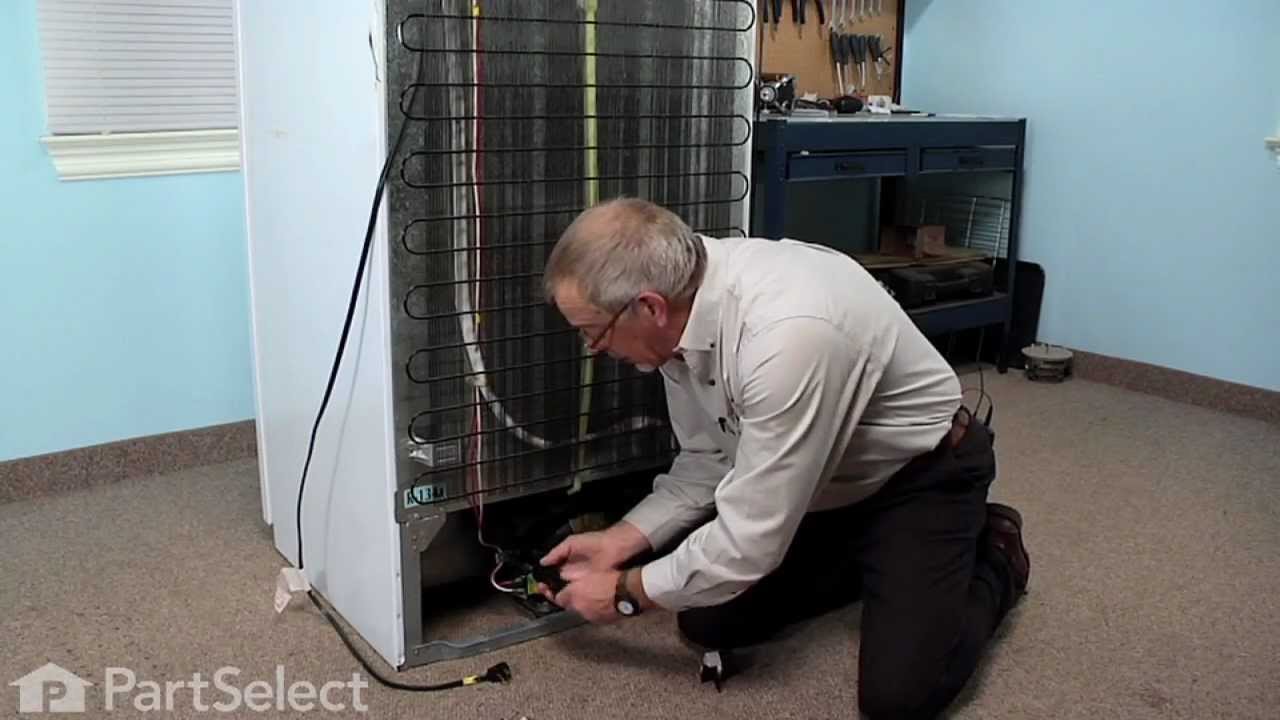

Videos For installing this part.

Installation Instructions Provided by PartSelect customers like you.

Average Repair Rating: 4.2 / 5.0, 7 reviews What's this?
1-7 of 7


56 of 63 people found this instruction helpful

Parts Used

  • Compressor Start Relay

Level of DifficultyEasy

Time to do repair:Less than 15 mins

Tools

CustomerMelvin from Semmes AL

Clicking sound then within a minute clicking again, not cooling.

UNPLUG REFRIGERATOR. Carefully remove relay from the side of the compressor. You shouldn't need a tool to do this, if it is hard you can gently pry the edge with a flat head screw driver just to loosen. Unplug white and red wires from relay, noting that the white wire goes in the hole with a #2 stamped beside it. Shake old relay, if it rattles like a baby rattler then it's most likely the problem. Replace wires into the new relay and plug back into the compressor.

Help other customers find the most helpful instructions.

Were these instructions helpful?

13 of 15 people found this instruction helpful

Parts Used

Level of DifficultyReally easy

Time to do repair:Less than 15 mins

ToolsScrew drivers

CustomerGiuseppe from brick NJ

Buttom of refrigerator not cold

unplug it, pulled compressor start relay,which i thing it was the problem, but i replace bolt, very easy.

Help other customers find the most helpful instructions.

Were these instructions helpful?

11 of 13 people found this instruction helpful

Parts Used

  • Compressor Start Relay

Level of DifficultyEasy

Time to do repair:15 - 30 mins

ToolsScrew drivers

CustomerJennifer from Jonestown TX

Stopped working, cooling.

I used a small screwdriver to disconnect wires from old starter. I connected the overload and starter, two wires. I put the unit back in the keeper, plugged the unit in, turned up the thermostat and it's working beautifully.

Help other customers find the most helpful instructions.

Were these instructions helpful?

11 of 17 people found this instruction helpful

Parts Used

Level of DifficultyEasy

Time to do repair:15 - 30 mins

ToolsNutdriver, Screw drivers

CustomerJohn from Virginia Beach VA

Would not freeze

unplugged, removed old parts, replaced with new

Help other customers find the most helpful instructions.

Were these instructions helpful?

7 of 9 people found this instruction helpful

Parts Used

  • Compressor Start Relay

Level of DifficultyReally easy

Time to do repair:15 - 30 mins

ToolsPliers, Screw drivers

CustomerSteve from Neosho MO

Freezer quit. Compressor would not start.

Like another post, the start relay rattled like a baby rattle. Replaced the start relay and freezer works great.

Help other customers find the most helpful instructions.

Were these instructions helpful?

3 of 5 people found this instruction helpful

Parts Used

  • Compressor Start Relay

Level of DifficultyEasy

Time to do repair:15 - 30 mins

ToolsScrew drivers, Socket set

CustomerGilmar from Miami FL

Mottor starts than stop.

i looked byhind the freezer , the mottor has the relay connected to it.i took out the relay, and i descovery something was loose inside, i decided to take to check out at sears to see if they have in stock that especific relay. they did not have, they could order, that's when i dicided to go ahead and looking for in the internet, good i found PARTSELECT,they had the part and i was very nice attended,they sent in 2 days i had fix my freezer. thanks PARTSELECT. gilmar couto.

Help other customers find the most helpful instructions.

Were these instructions helpful?

4 of 8 people found this instruction helpful

Parts Used

Level of DifficultyReally easy

Time to do repair:15 - 30 mins

ToolsPliers, Screw drivers

CustomerGeorge from Canonsburg PA

The compressor wouldn't run it kept going on and off and wouldn't stay running,

I unwired the overload and installed the new overoad. Plugged the starter in to the back of the compressor and wired it up. Now I'm trying to get the freezer filled up again!

Help other customers find the most helpful instructions.

Were these instructions helpful?
