PartSelect Number PS1990907

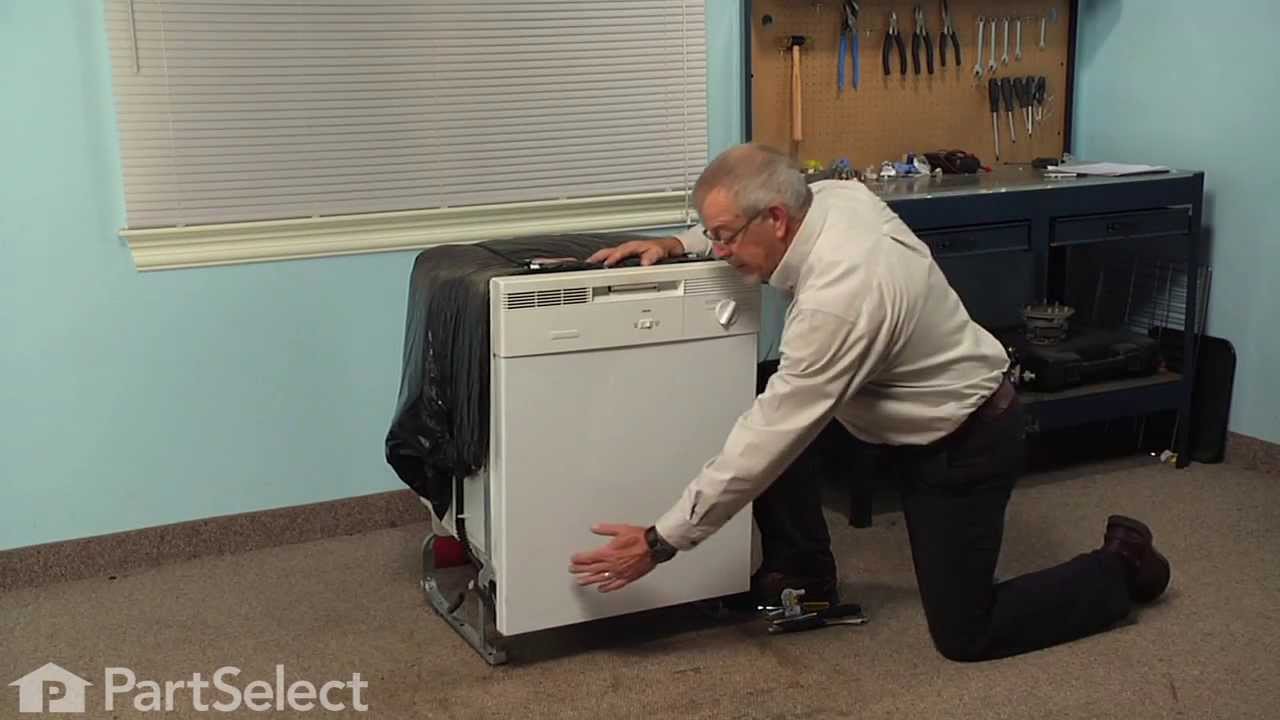

This water inlet valve should be located behind the lower kickplate panel in either the right or left corner. The attaching solenoids on the valve open and close according to the desired amount of water needed.
This part works with the following brands: Frigidaire, Gibson, Kelvinator, Kenmore, Tappan & White-Westinghouse.
This part fixes the following symptoms:
Remove the bottom cover plate. Disconnect the water inlet and black rubber hose. Remove 2 mounting screws. Pull out electrical connector. Reverse order. Be sure to get the brass inlet connector really tight so it won't leak. I did the final tightning after the part is mounted. Not a bad repair at all. The only problem was that it leaked in the first place and messed up my subfloor and laminate flooring.
Help other customers find the most helpful instructions.
Were these instructions helpful?
1. Shut off water supply.2. Removed inlet water hose where it connects to the vavle assembly.3. Removed the two bracket screws holding the assembly to the frame, and detached the electrical connection from the solinoid.4. Removed the inlet hose adapter connection from old valve and installed into new valve.5. Attached electrical connection to new valve solinoid.6. Remounted assembly to the frame.7. Re-attached the inlet water hose to the hose adapter connection on the valve.8. Turned on the water, washed some dishes.
Unplugged dishwasher, pulled it out. Unclamped hose and unscrewed water source to inlet valve, removed wiring harness, unscrewed bracket and reinstalled new valve. Now have a functioning dishwasher.
I ran the dishwasher with the door slightly open by wedging a piece of plastic in the door slot, so the machine thought the door was closed. after this i noticed that the water coming into the washer was very slow. i the taken the front panel off the bottom. which gave access to the main inlet valve. Bit akward as very little space. Anyways i figured that the water wasnt enough and so i put two warm pots of water in. straight away the jet came on and spraying the dishes. ithen checked the pipe to see if blocked or bent. and so after that i knew it was the valve.(( so one last test after the valve was off i turned the water supply on (making sure a caught the water) to see if there was enough pressure in the pipe also. and there was plenty)). Easy to undo the valve- but as i said you may need to lye on the floor if it is fitted in. (ps make sure you turn of the water first) undo the flexi pipe with plyers and slide off (should be a squeezable ring). unclip the two wires remembering which colour go on top and bottom- then twist the valve off..BUT make sure you support the pipe behind- else you may break it or crack it, if the valve is hard to unscrew. then simply replace with the new valve(apply two rounds of water tape-just incase) and once aligned up as before clip the pipe back on making sure there are no kinks in the pipe-and then replace the two wires. (Test the machine before closing up) Finally place all fitting to the dishwaher and you're ready to go!!! saved tons of money with this fix. only issue was that the valve was slightly different and the offset was 90degrees off...(not an orginal part..) but hey it works!!!
I will make a few additions to the other instructions, which are great and let me see that the job was doable. To the tools needed, add pipe tape.1. Shut off water supply.2. Removed inlet water hose where it connects to the valve assembly. (This was a pain on my machine—too little room for the wrench, you may have a better tool—but I did get it out, slowly.)3. Removed the two bracket screws holding the assembly to the frame, and detached the electrical connection (Look for your red and blue wires on the connector, my red was to the top of the solenoid, and reattach with the same grounding) from the solenoid. (This step was a great bit of information; It allowed me to see that I could do the following steps with ease, That is, the unit dropped down where you could work on it.)4. Removed the inlet hose adapter connection from old valve and installed into new valve.5. Attached electrical connection to new valve solenoid.6. Remounted assembly to the frame.7. Re-attached the inlet water hose to the hose adapter connection on the valve. (I had to take off the L shaped connector at the bottom of the old valve and add it to the new valve. This was an extra step that required two bigger wrenches to hold the old assembly and unscrew the L joint. I just needed the extra leverage to get the old off and the new on. I am referring to the copper connection that connects to you water supply)(8) The new valve had a slightly different configuration than my old. The rack it sits on was about an inch or so longer. This meant that I had to readjust my copper pipe just a bit to match up when it was reassembled. No big deal, I had lots of pipe length to work with. Actually, moving the valve a bit further back made more room for the wrench to work—very happy about that. In addition, the hose attachment went from a left exit to a back exit. Doesn’t seem to matter. (9) Turned on the water, washed some dishes. (Took me about an hour, mostly because of the difficulty with the wrenches. Otherwise—piece of cake)
Unscrewed dishwasher from cabinet and pulled out about 1 foot. Took bottom plate off of dishwasher. Undid clamp on hose of discharge of inlet water valve and removed hose. Shut off water to water inlet valve and removed. Took wiring clip off of water inlet valve. Removed 2 screws holding water inlet valve in place. Installed new water inlet valve in reverse order.
remove vanity paneldisconnect copper supply line from valveremove valve mounting screwsrotate valve to access hose clamploosen clamp and slide up rubber tubing about 2 inchespull hose off barbed fitting and remove old valvereverse order with new valve
turned off electricity, pulled dishwasher out about a foot, turned off water too dishwasher, removed inlet valve and replaced it with new.
After i identified where it was leaking i cut the vave off under sink so i could remove part. All it had was 2 screws holding it to the frame and of course the copper line. I then went online to parts select and within 2 days my part arrived,i was planning on being down for at least a week but not with part select!! Thank you all for the great service!
Remove water supply, take off two screws, attach new part reconnect water supply.
The Inlet valve was leaking. I removed the old valve in less than 30 min.Note: need bright flashlight! It could have been quicker but I had to lie on the floor and squeeze my big hands under the opening (kick panel). Once I got the two small bolts out, I was able to manipulate the valve out from under the dishwasher, then I carefully removed the two lines. I received the part in 5 days and installed it in 45 minutes. It could have been a faster installation, however I was not about to pull out the whole dishwasher. Again, I was able to manipulate the new valve back in & tighten then test everything.(note: need a bright flashlight to see underneath) I immediately ran a load of dishes and Presto! No leaks and runs like a Swiss watch!
Completly disconnected and layed dishwasher on its side for better access. New valve support was 1 inch longer than original but created no problem. it took no more than 30 min. to complete job.
turn water off,remove hoses,remove valve,install valve and hoses,turn water on
shut off water supply, unhook water line first so i could pull the washer out first. pull washer out and the valve is on the lower left if your facin the washer. easy to get to and very simple to change out.
turned off water supply. replaced the water inlet valve. replaced the updated lower spray arm.works like new again!!
