PartSelect Number PS11748479
This hi-limit thermostat acts as a safety mechanism that keeps the dryer from overheating. With this thermostat, a dryer's heating element will cut out if the internal temperature reaches 225 degrees Fahrenheit. The element will kick back in when the temperature drops to 185 degrees Fahrenheit - the differential of 40 degrees.
This part works with the following brands: Whirlpool, Admiral, Estate, Inglis, Kenmore, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood.
This part fixes the following symptoms:
First I unplugged the dryer from the wall outlet. Then, removed the access panel in the lower front (held on by 2 screws near the floor). Then, I removed the black plastic air duct (held by 3 screws) in front of the blower. Then, with a Sharpie marker, next to each wire terminal lug, I labeled on the chassis the COLOR of each wire where it plugs on to a terminal lug (for proper wiring re-assembly later). Then, thru the lower front, I reached into the lower left rear of the dryer to remove the heating element assembly from its metal duct (held by 3 or 4 screws) - it slides down a bit, then it is easily removable. I layed the element on the floor in front of the dryer - all wiring still intact. Then, using the NEW HEATING ELEMENT and SENSORS ordered, I assembled them to match the original, re-using screws off of the old unit - and moving the wiring one-by-one from the original to the new assembly. I then installed the new heating element assembly into the duct at the lower rear of the dryer. I then replaced the 2 sensors on the front metal panel of blower housing, with new parts from my order, re-using the original wiring and screws. Then I re-installed the black plastic duct onto the front of the blower. Then, on the top of the dryer, I dissassembled the control panel from the rear, by removing 5 screws. I then found the resistor mounted on the back of the timer, and replaced it with the new one. Since the new resistor did not come with terminal lugs crimped on its wires, I had to cut the terminal lugs off of the original resistor and solder them onto the new resistor. I then reassembled the control panel. I then plugged the dryer back into the wall outlet and did a test run with no clothes. IT WORKED !! Then I reinstalled the lower front access panel and ran the dryer with wet clothes. IT WORKED !!
Help other customers find the most helpful instructions.
Were these instructions helpful?
Replaced heating element, which had a fuse and high limit thermostat attached to it. Remove 2 screws to pull the bottom cover plate on the dryer, remove 3 screws to pull the blower inlet shroud and then remove 2 screws to pull the heating element off the air inlet duct at the back of the dryer. Remove 2 screws each for the thermostat and fuse. Installed the new devices back onto the new heating element. Power leads to the element are long so you can pull the whole thing out very easily. Couldn't have been any easier to fix.
This dryer required complete take apart to get to heating element, including removal of drum. Multimeter indicated thermal fuse blown. I replaced it and it blew again. I replaced fuse(again), heating element, limit thermostat, and cycling thermostat to eliminate all potential causes. Dryer works like new. Cycling thermostat had been bad for years, but I never knew it, just had to run dryer two cycles all the time.
I watched your video on your website first and followed the simple instructions. I completed the repair in 40 minutes. Works like it was brand new....
took off lower front panel was able to reach all parts ...all parts i ordered were perfect matches........
Remove 2 screws on the front panel at the bottom of the dryer & remove front panel. Remove the black plastic "duct" from blower to lint filter by removing 3 screws. Heating element is on the back wall of the dryer in the lower left corner. 2 screws hold the heating element to the dryer wall. Remove these 2 screws. Might be a little tight to get back there. Try to be more patient than me. :) The wires on the heating element are plenty long enough to bring to the front & outside of the dryer. Remove screws holding thermostat & fuse to heating element. I wasn't sure if I needed a new thermostat or not, but it wasn't expensive so I went ahead & decided to put a new thermostat on the new heating element. I re-used the fuse from the old element, but they're not expensive either. Just notice how rthe thermostat and fuse are oriented on the old element & put them on the new element in the same orientation. I had to use pliers to get the wires off the old element's terminals. They were a little tricky to get off, but my dryer is over 10 years old. They've been on there a while. Just move 1 wire from old element to new element at a time. That way you don't have as much of a chance hooking up the wires wrong. Put new element in & everything back together. I vacuumed out the lint in the bottom of the dryer. I ran the dryer for over 30 minutes with no clothes in it to break the new heating element in. You're good to go! You CAN do this yourself. It's not a hard repair to do. Don't buy a new dryer or pay an appliance repair guy! Thanks to PartSelect for quick delivery & posting these instructions from other people!!
I opened the front panel and removed the heating element from the rear of the dryer by removing the two screws that held it in place, and slid the element out. using a mulitester I checked the High limit Fuse and it was not working.I ordered the part and replaced it. Everything worked great for two days and the dryer stopped heating again. My brother asked if I had replaced the thermostat because something burned out the fuse. He was right. I ordered both parts and replaced them. Every thing is working just fine. Save some money and time by replacing both parts at the same time.
removed lower front panel, two screws on bottom edge. Limit thermostat located on lower portion of vertical panel at rear of dryer. I was able to detach the two wires and removed the two thermostate retention screws with a nut driver. Since I could only operate with one hand, I taped the new thermostat in place lining up the screw holes in order to replace the two hex screws. reattached the two wires and front panel.
First I turned off the circuit breaker, then removed the two screws that hold the front lower panel in place. Once open I removed the 2 screws that held the element in place. (Far back left side) I then pulled the element out leaving all wires connected. Wires are long enough to extend out to the floor in front of the dryer. I simply exchanged the wires one at a time to the new element so no mistakes could be made. Reinstall, reset the breaker, and Instant HEAT. Repaired for under $40.00
Remove bottom panel from dryer. disconnect wires off of Limit switch. Unscrew 2 screws, remove old switch. Reverse to install. Important, if limit goes bad you need to replace cycling thermostat or chances are the limit will go out again. (Limit on back wall of dryer). The cycling thermostat is right under the lint screen. Remove 3 wires. Remove 2 screws, remove switch. Reverse to install new cycling thermostat. Toatl cost of 2 parts used 16 dollars and change. Thanks
After taken apart to replace high limit thermostat fuse and limit thermostat took about 5 minutes. Also our dryer always ran very hot no matter what setting it was on. Replaced idler pulley wheel also because seemed not to rotate very well. Put all back together and worked perfect. Ran and does not overheat now.

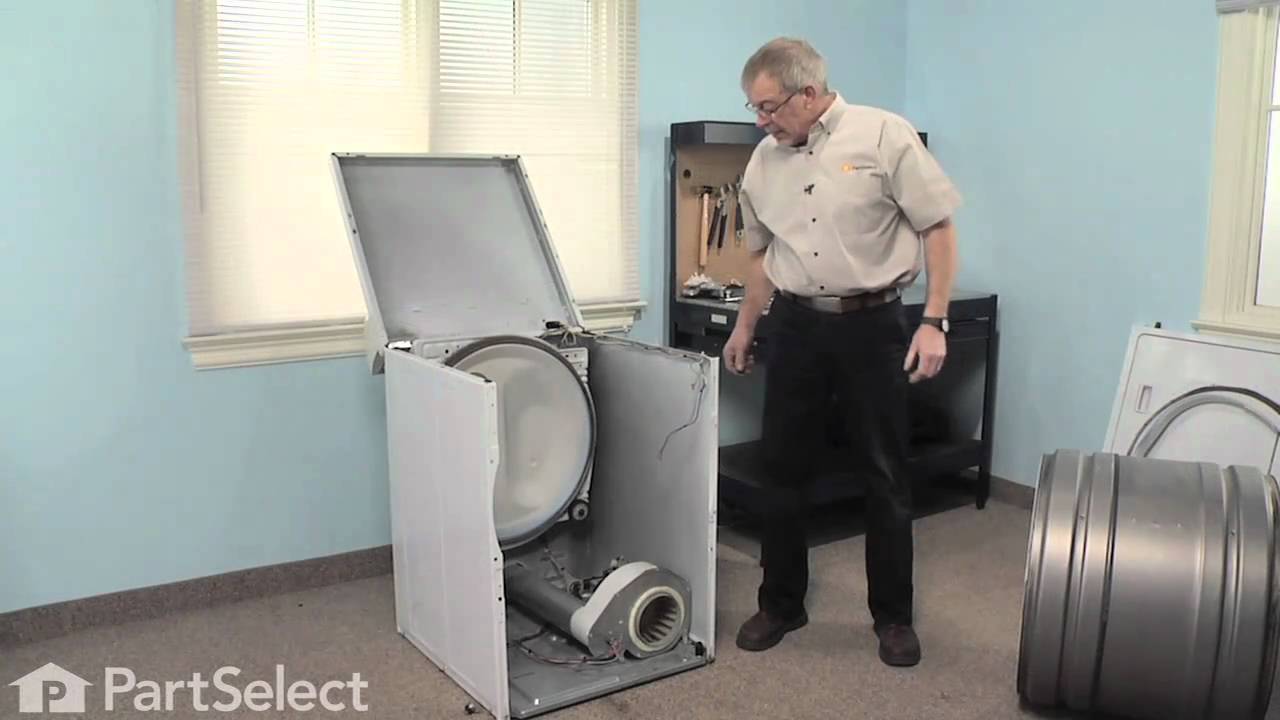

The video on the web-site was very helpful in showing how to take it apart. First we remove the power plug from the wall outlet. Then we used flat scrapper to push the top two hidden clips to release the Dryer's top. We used the nut driver to unscrew the two screws that held the front panel. We carefully remove the wires that were connected to switch sensor for the door, and the lights. Next step was to unscrew couple more screws that held the front piece from the main fan housing. At the bottom locate the tensioner of the belt. Release it. Remove the dryer drum with the belt. We took the opportunity to clean off the lint that was all over on the bottom of the dryer. We then could reach the bottom left back of the dryer to unscrew the screws that held the heater unit. Before that we unscrew and release the wires for the Thermal fuse and the limit thermostat which are all located on the heating unit. Then we replace with new pieces. Upon removal of the heating unit we noticed the broken heating element. Next was to place the drum back in. We made sure that the drum lined up with the rear support piece then the front. We rotated the drum just to make sure that it was sitting correctly. Then we screwed the front housing unit. Then we put the front panel back on the hooks at the bottom. That help to line up the front panel with the main chasis. We connected all the connectors to the right terminals. Last was to set the top down on to the chasis. We checked that the duct in the rear is not obstucted. Lastly was plugging in the power cord and testing the dryer. It is working again. Thanks to Part Select's video and parts. Total time was just over half an hour.
I just took the bottom front panel off and the parts I needed to rplace where in the back and very easy to get to . I decided to replace all 3 while I was in there. The parts were not to high, so that is why I did that.
A friend did the repair for me. Very simple. Saved me a lot of money by getting the parts and fixing the problem. Thanks!
Opened top cover at corners to access screws on each side of front. After removing screws from inside of front door, lift the door and panel off of retainer clipson the bottom front corners. Thermal fuse is located at the back left side mounted on the heating element cover. Can be checked for contunity if open. Next to it is the thermaostat limit control. Both should be replaced, even if just the fuse is open. Why? The dryer took long to dry since it was new. This not only corrected the starting problem, but it now dryes faster. Apparently a defective thermostat limit when it was new.
