PartSelect Number PS11742274
Meant as a backup to a high limit thermostat, this fuse is typically set to trip at a higher temperature than that of a high limit thermostat. This is a one-time use fuse, so when it does trip, you do need to replace it. It's letting you know that something is wrong with your dryer.
This part works with the following brands: Whirlpool, Admiral, Estate, Inglis, Kenmore, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood.
This part fixes the following symptoms:
First I unplugged the dryer from the wall outlet. Then, removed the access panel in the lower front (held on by 2 screws near the floor). Then, I removed the black plastic air duct (held by 3 screws) in front of the blower. Then, with a Sharpie marker, next to each wire terminal lug, I labeled on the chassis the COLOR of each wire where it plugs on to a terminal lug (for proper wiring re-assembly later). Then, thru the lower front, I reached into the lower left rear of the dryer to remove the heating element assembly from its metal duct (held by 3 or 4 screws) - it slides down a bit, then it is easily removable. I layed the element on the floor in front of the dryer - all wiring still intact. Then, using the NEW HEATING ELEMENT and SENSORS ordered, I assembled them to match the original, re-using screws off of the old unit - and moving the wiring one-by-one from the original to the new assembly. I then installed the new heating element assembly into the duct at the lower rear of the dryer. I then replaced the 2 sensors on the front metal panel of blower housing, with new parts from my order, re-using the original wiring and screws. Then I re-installed the black plastic duct onto the front of the blower. Then, on the top of the dryer, I dissassembled the control panel from the rear, by removing 5 screws. I then found the resistor mounted on the back of the timer, and replaced it with the new one. Since the new resistor did not come with terminal lugs crimped on its wires, I had to cut the terminal lugs off of the original resistor and solder them onto the new resistor. I then reassembled the control panel. I then plugged the dryer back into the wall outlet and did a test run with no clothes. IT WORKED !! Then I reinstalled the lower front access panel and ran the dryer with wet clothes. IT WORKED !!
Help other customers find the most helpful instructions.
Were these instructions helpful?
Replaced heating element, which had a fuse and high limit thermostat attached to it. Remove 2 screws to pull the bottom cover plate on the dryer, remove 3 screws to pull the blower inlet shroud and then remove 2 screws to pull the heating element off the air inlet duct at the back of the dryer. Remove 2 screws each for the thermostat and fuse. Installed the new devices back onto the new heating element. Power leads to the element are long so you can pull the whole thing out very easily. Couldn't have been any easier to fix.
I did reseach online and the first thing they told you to check were the thermostats and the thermal fuse, so I ordered those parts. I took the dryer apart, found the parts and tested them with my ohm meter and they all tested fine. I should have tested them initially before ordering them. Then I did more research and found out that if the thermostats are fine, it is more than likely the Coil Valves and there are 2. I also learned that you can test these parts and they may test correctly, but they will test differently when they are hot versues cold. I seemed confident that these would do the trick. I ordered the parts and replaced them, which was very easy to do. Then I put the dryer back together, started it and it worked perfectly!!!PartSelect website was very help and I received the parts very quickly. I'm returning the parts that were not used for a refund.
This dryer required complete take apart to get to heating element, including removal of drum. Multimeter indicated thermal fuse blown. I replaced it and it blew again. I replaced fuse(again), heating element, limit thermostat, and cycling thermostat to eliminate all potential causes. Dryer works like new. Cycling thermostat had been bad for years, but I never knew it, just had to run dryer two cycles all the time.
Based on my research, the thermal fuse could be blown out so I tested it and it was. I've replaced the thermal fuse, high-limit thermostat and cycling thermostat. bam! it's up and running again. I'd highly recommended ordering your parts thru PartSeclect..the order was easy and shipping is quick. Thanks
This was the second time we lost the High Limit Thermal Fuse. My wife dried some new towels and the lint filter completely plugged before the cycle was done and popped the high limit fuse. I went throught this before and paid a fortune for a repairman and ended up installing the thermal fuse myself so I did it myself and saved about $100. I also ordered an element kit so I have it. I will just swap out element units if there is a next time. Maybe the next time we buy new towels. It only takes few minutes to remove the front lower panel and unplug two wires, remove two screws and the element assembly with both the fuse and the thermostat are out. It is easy to replace the fuse with the element assembly in your hands and in good light.
took off lower front panel was able to reach all parts ...all parts i ordered were perfect matches........
I opened the front panel and removed the heating element from the rear of the dryer by removing the two screws that held it in place, and slid the element out. using a mulitester I checked the High limit Fuse and it was not working.I ordered the part and replaced it. Everything worked great for two days and the dryer stopped heating again. My brother asked if I had replaced the thermostat because something burned out the fuse. He was right. I ordered both parts and replaced them. Every thing is working just fine. Save some money and time by replacing both parts at the same time.
first i checked the power supply then i checked each of the switches and limit fuses for continuity.to do that i had to take the front of the drier off, four screws there. then i removed the bad limit switch 2 screws,the door switch was bad so i replaced it, no screws. since i had the front off the drier i removed the four screws that held the drum in place and replaced the belt. assembled the drier in reverse order when the parts came. 1/2hour total labor.
I purchased the "m" series ignition coil kit per" ask how repair man". Installation was straight forward. Simple repair when correct parts are used.
Determined that the 2 completely worn off front & rear drum seals were causing dryer to take too long to dry clothes.Removed the front bottom panel first, then the middle panel and then the top panel. After removing the belt from the drum, it came out easily. Replaced both thermostats and fusejust so they would be new in the unit.Reglued the seals in place and waited til glue dried. Then reassembled everything back. Also lubricated the drum wheels. Everything worked and was quiet!
I first unpluged the dryer then removed the bottom cover (two screws) then found the correct socket and removed the components and replaced them wire for wire. PLugged it back in and strated the dryer and watched the process. Unforunately it cycled twice and then stopped working. I went to a local appliance store to buy another high limit fuse because I thought it blew and happened to talk about the situation to a man behind the counter and he insisted it was the gas coils so I bought some and replaced them and its working fine now without replacing any more components. Im not a aapliance repair man but mechanically inclined but experience does pay. Hey, everything is easy if you know how...
Removed the top and opened the front cover had to use a 1/4 inch socket with a 5/16 and a short adapter to remove the sensors. The push on wire clips were very hard to remove so I used a pick to open them a little. Before replacing the wires I sqeezed them back to normal so they would not vibrate off. Not much space to work if you don't have the tools but it could be done by removing the gas tube and the heat tube but it will take more time. We have put perhaps 30 loads into the dryer this week and its working better than ever. The Thermostat limit switch was blown used a voltmeter to test for continuity. and I accidentally broke the ends of the high limit switch off while testing due to the tight clips. Maytag sure cant make them like they used to but glad I found a place to get the parts which are easy to replace and the instructions are great to figure out the problem.

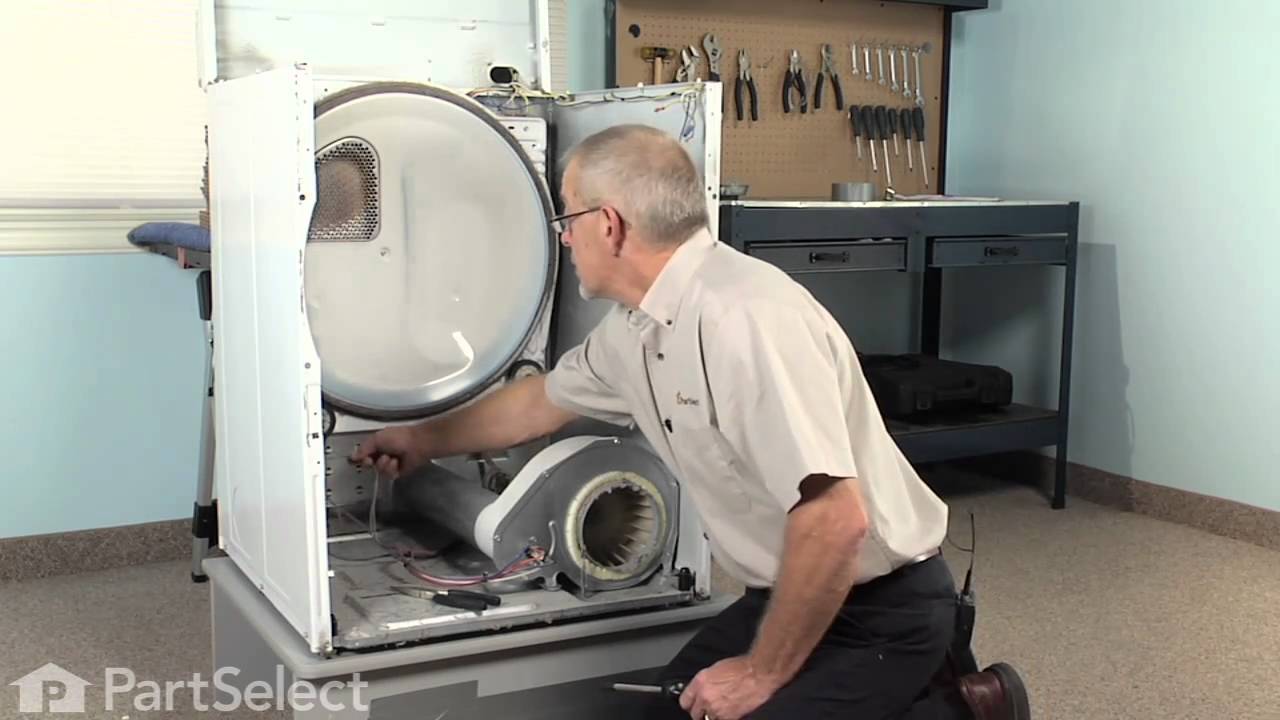

The video on the web-site was very helpful in showing how to take it apart. First we remove the power plug from the wall outlet. Then we used flat scrapper to push the top two hidden clips to release the Dryer's top. We used the nut driver to unscrew the two screws that held the front panel. We carefully remove the wires that were connected to switch sensor for the door, and the lights. Next step was to unscrew couple more screws that held the front piece from the main fan housing. At the bottom locate the tensioner of the belt. Release it. Remove the dryer drum with the belt. We took the opportunity to clean off the lint that was all over on the bottom of the dryer. We then could reach the bottom left back of the dryer to unscrew the screws that held the heater unit. Before that we unscrew and release the wires for the Thermal fuse and the limit thermostat which are all located on the heating unit. Then we replace with new pieces. Upon removal of the heating unit we noticed the broken heating element. Next was to place the drum back in. We made sure that the drum lined up with the rear support piece then the front. We rotated the drum just to make sure that it was sitting correctly. Then we screwed the front housing unit. Then we put the front panel back on the hooks at the bottom. That help to line up the front panel with the main chasis. We connected all the connectors to the right terminals. Last was to set the top down on to the chasis. We checked that the duct in the rear is not obstucted. Lastly was plugging in the power cord and testing the dryer. It is working again. Thanks to Part Select's video and parts. Total time was just over half an hour.
