11739488-1-S-Whirlpool-WP22004042-Agitator Assembly
11739488-1-S-Whirlpool-WP22004042-Agitator Assembly 11739488-2-S-Whirlpool-WP22004042-Agitator Assembly 11739488-3-S-Whirlpool-WP22004042-Agitator Assembly http://www.partselect.com/Schematics/Maytag/56004.gif

Agitator Assembly

PartSelect Number PS11739488

This includes the upper and lower parts of the agitator.

This part works with the following brands: Whirlpool, Admiral, Estate, Inglis, Kenmore, KitchenAid, Roper, Maytag, Crosley, Jenn-Air, Hardwick, Magic Chef, Amana, Caloric & Glenwood.

This part fixes the following symptoms:

  • Will not agitate.
  • Noisy.

Compare At

$96.41

You Save

$16.07

Your Price

$80.34
Order within the next 3 hrs and your part ships today!
Get this part fast. Average delivery time via regular ground: 1.8 days.

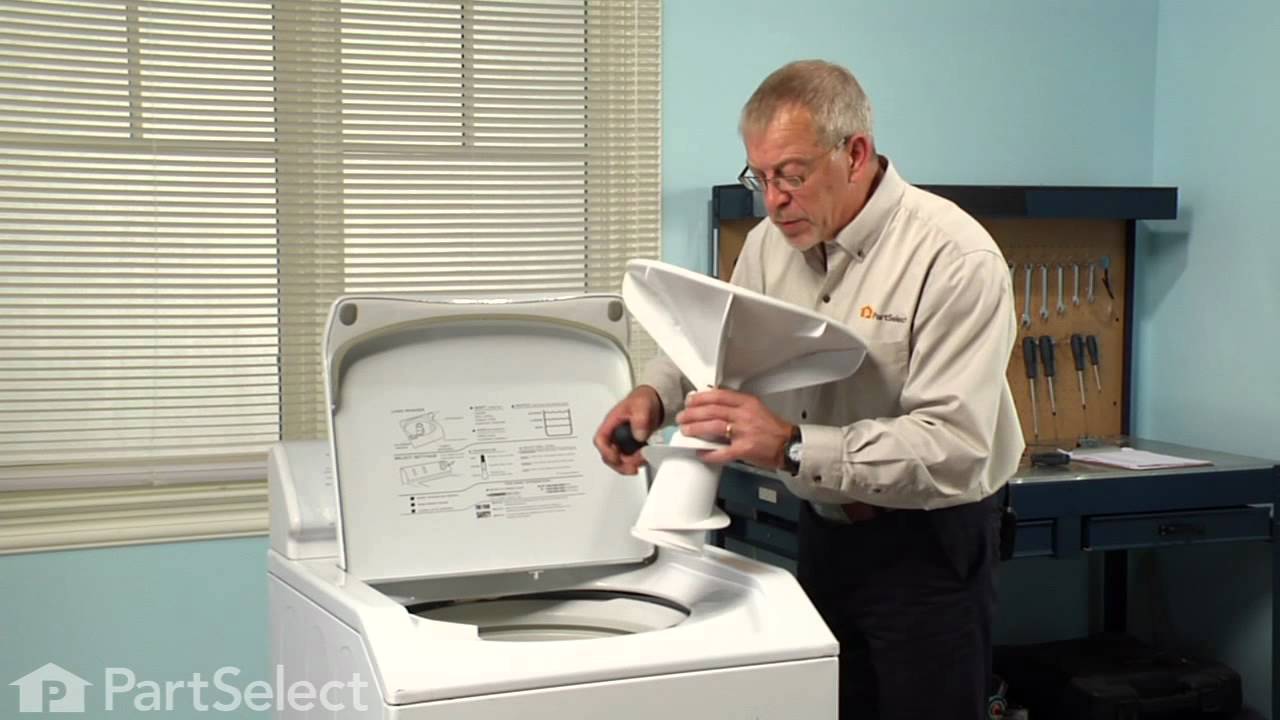

Videos For installing this part.

Installation Instructions Provided by PartSelect customers like you.

Average Repair Rating: 4.7 / 5.0, 12 reviews What's this?
1-12 of 12


69 of 96 people found this instruction helpful

Parts Used:
Level of Difficulty: Really Easy
Time to do repair: Less than 15 mins
Tools: Socket set
Customer: ERIC from DUMONT, NJ

Auger assembly on maytag washer was missing two agitation fins

I ordered the necessary parts which were so easy to find with Model Number of the Washer, ordered parts on a Tuesday and recieved them on a Friday!, wow was I surprised.
I simply removed the softener dispenser, used a socket set to remove single bolt and pulled broken agitator out and installed the new one after replacing the bolt.

Help other customers find the most helpful instructions.

Were these instructions helpful?

22 of 24 people found this instruction helpful

Parts Used:
  • Agitator Assembly
Level of Difficulty: Really Easy
Time to do repair: Less than 15 mins
Tools: Socket set
Customer: David from Holcombe, WI

Sneakers broke fins off the agitator

I first grasped the fabric softner dispenser and pulled it up and off agitator. I then removed the bolt from the center of the agitator with a 1/2" socket, 8" extension and ratchet. I grasped the agitator assembly and pulled it up and off. Reversed the procedure to install. The bolt can be started by placing a piece of paper towel over the socket, then inserting the bolt into the socket. It will hold it there while you start the bolt. I also took the opportunity to clean the accumulated soap scum from under the agitator while it was disassembled. An easy fix!!!

Help other customers find the most helpful instructions.

Were these instructions helpful?

13 of 17 people found this instruction helpful

Parts Used:
  • Agitator Assembly
Level of Difficulty: Really Easy
Time to do repair: Less than 15 mins
Tools: Nutdriver, Socket set
Customer: Gerald from Spring, TX

Washer would not agitate

Remover agitator/Auger assembly. Install new agitator/auger assembly. Washer still would not agitate. Called repairman and found the transmission was bad. Fortunately transmission was still under warranty. 10 year warranty on transmission.

Help other customers find the most helpful instructions.

Were these instructions helpful?

6 of 6 people found this instruction helpful

Parts Used:
  • Agitator Assembly
Level of Difficulty: Easy
Time to do repair: Less than 15 mins
Tools: Socket set
Customer: Robert from Suisun City, CA

Auger top would hit the top lid

The replacement was very easy, just one bolt and RR was a snap. However, the first part that came was defective and I called the 800 number, spoke to the rep and the part came the next day. Excellent customer service, and would do business again

Help other customers find the most helpful instructions.

Were these instructions helpful?

8 of 12 people found this instruction helpful

Parts Used:
Level of Difficulty: Really Easy
Time to do repair: Less than 15 mins
Tools: Wrench set
Customer: Johan from Kingsford, MI

Old agitator broke

Removed old agitator, and installed new one. Very easy.

Help other customers find the most helpful instructions.

Were these instructions helpful?

6 of 6 people found this instruction helpful

Parts Used:
  • Agitator Assembly
Level of Difficulty: Really Easy
Time to do repair: Less than 15 mins
Tools: Screw drivers, Socket set
Customer: Charles F from Brooklyn, OH

Auger was broken

Needed a medium extension and a rachet a screw driver and a 13mm socket. I used a short screw driver and inserted in it the softer container and lifted it strait up to get the softner container out of the way. I used the medium extension to reach in the auger and loosen the small bolt holding the auger on the machine. Pulled it up and out. Reversed the above procedure and it was set to go. Total time about 8 to 10 minutes. Thank for all the help Kudos to all including Susan W.

Help other customers find the most helpful instructions.

Were these instructions helpful?

6 of 8 people found this instruction helpful

Parts Used:
  • Agitator Assembly
Level of Difficulty: Really Easy
Time to do repair: Less than 15 mins
Tools: Socket set, Wrench (Adjustable)
Customer: Paul from ATLANTIC HIGHLANDS, NJ

Washer agitator fins snapped off

I first took the fabric softener dispenser off and used
a ratchet wrench to take the nut off. I then removed
the agitator, put the new one on and reversed the process. It was extremely easy!

Help other customers find the most helpful instructions.

Were these instructions helpful?

4 of 4 people found this instruction helpful

Parts Used:
  • Agitator Assembly
Level of Difficulty: Easy
Time to do repair: 15 - 30 mins
Tools: Socket set
Customer: John from Douglassville, PA

Broken fins on agitator.

I went ot the Parts Select web site, and read what other people had done with the same problem. The advice was right on. Using the paper towel to hold the screw in place during reassembly ws great advice. Thanks for the heads- up.

Help other customers find the most helpful instructions.

Were these instructions helpful?

4 of 4 people found this instruction helpful

Parts Used:
  • Agitator Assembly
Level of Difficulty: Really Easy
Time to do repair: 15 - 30 mins
Tools: Socket set
Customer: John from Ava, MO

The auger section of this part would no longer stay attached to the lower agitator part due to prior repair work

Use a blade to pop off the fabric softener dispenser cup. Use socket and extension to unscrew the single hex bolt that attaches the assembly to the shaft. Lift off the assembly and recover the flat washer. Install the new assembly over the shaft and install the original hex bolt and washer. Tighten firmly. Snap the dispenser cup back in place.

Help other customers find the most helpful instructions.

Were these instructions helpful?

5 of 8 people found this instruction helpful

Parts Used:
  • Agitator Assembly
Level of Difficulty: Really Easy
Time to do repair: Less than 15 mins
Tools: Screw drivers, Socket set
Customer: Frank from Bethel Park, PA

Fans on the agitator had broken off.

I popped off the fabric softener on top of the agitator. Used an extended arm on my socket set to remove the only nut holding the agitator on the motor assembly apparatus. The agitator came off with ease. Just reversed the procedure in replacing the new agitator. This was an easy job.

Help other customers find the most helpful instructions.

Were these instructions helpful?

2 of 3 people found this instruction helpful

Parts Used:
  • Agitator Assembly
Level of Difficulty: Really Easy
Time to do repair: 15 - 30 mins
Tools: Socket set
Customer: Michael from Lyndhurst, OH

Finn broke on the agitator/auger

Pop the cap off the agitator/auger no tools needed. Once removed select a socket and a socket exstension. remove the screw amd pull off the part. Make sure to save the washer that may be still attached to the inside of the agitator. install the new agitator using the existing screw and washer. Takes about 15 minutes.

Help other customers find the most helpful instructions.

Were these instructions helpful?

2 of 4 people found this instruction helpful

Parts Used:
  • Agitator Assembly
Level of Difficulty: Really Easy
Time to do repair: Less than 15 mins
Tools: Socket set
Customer: emily from waco, TX

Broken agitator

very easy replacement. was probably broken for a year and only took five minutes to replace. Can't believe we waited so long!
