Models > HTS16GBRFRWW

HTS16GBRFRWW Hotpoint Refrigerator - Overview

Get Parts and Repair Help for HTS16GBRFRWW

If you know the refrigerator repair part you need, you can browse the list of all parts on the HTS16GBRFRWW, or you can search by name or part description. You can also find your part by where it is located on the HTS16GBRFRWW by selecting a section below. If you’re not sure which part you need, you can narrow your search by selecting a common symptom and we’ll show you the repair parts most likely to fix your refrigerator. We’ve also included any installation videos we have for HTS16GBRFRWW parts. Installation instructions provided by other do-it-yourselfers will help guide you through your repair.

Sections of the HTS16GBRFRWW

[Viewing 4 of 4]
Search for parts
Keep searches simple, eg. "belt" or "pump". Need help?
$3.88

Light Bulb - 40W

This an authentic OEM 40-Watt replacement light bulb, used in a number of household appliances. It is specially designed to withstand extreme temperatures, which is why these repla...

Order within the next 6 hrs and your part ships today!
$42.51

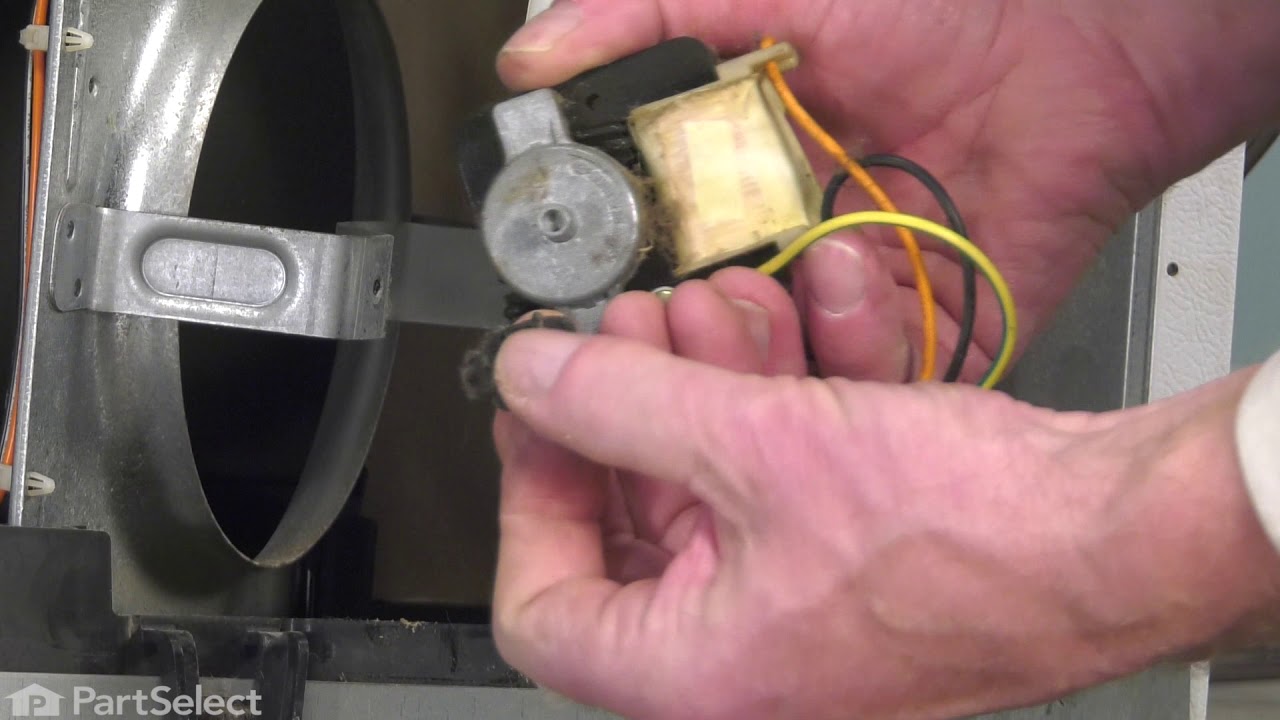

Evaporator Fan Motor - 115V 60Hz

This evaporator fan motor is in the back of the freezer and circulates air over the refrigerator coils. These coils will convert the heat into cool air, which is then circulated. If you notice that your freezer is making unusual sounds or is warm in temperature it may be due to the breakdown of the evaporator fan motor. For this repair, you will need needle nose pliers, a Phillips screw driver, a small flat blade screw driver, and a nut driver. Tip: Before you remove the ice cube tray to access the fan cover, ensure that it is warm enough so it does not break apart when you handle it.

Order within the next 6 hrs and your part ships today!
$2.67

Evaporator Fan Grommet - Red

If you notice that your refrigerator or freezer is noisy or too warm, you may need to replace the evaporator fan grommet. This part is red in color, and is about 1 inch in diameter...

Order within the next 6 hrs and your part ships today!
$18.24

Door Shelf Retainer Bar End Cap - Left or Right Side

This end cap is sold individually. It can be used for the right or left side of either the freezer or refrigerator door shelves.

Order within the next 6 hrs and your part ships today!
$3.46

SWITCH LIGHT

The interior light of your refrigerator is controlled by a switch that is activated when the door is opened and closed. If your refrigerator light will not turn on, there could be ...

Order within the next 6 hrs and your part ships today!
$50.70

Vegetable Drawer Shelf Frame

Frame only. Glass NOT included.

Order within the next 6 hrs and your part ships today!
$3.50

Evaporator/Condensor Fan Grommet

Order within the next 6 hrs and your part ships today!
$1.87

Compression Ring

This compression ring is meant to hold the evaporator fan motor in place in the freezer compartment of your refrigerator. This is is a genuine OEM part. The tools needed to complete this repair are a Phillips screw driver and small flat blade screw driver. Be sure to turn off your refrigerator before removing the evaporator fan cover so the fan does not turn on during repair. It is recommended to check the grommets, evaporator fan, and fan blades during repair in case they also need replacning. The compression ring may need replacing if the fan is noisy, or the refrigerator compartments are too warm. This part is sold individually.

Order within the next 6 hrs and your part ships today!
$8.03

Evaporator Fan Blade

This blade attaches to the evaporator motor.

Order within the next 6 hrs and your part ships today!
$34.79

Condenser Fan Motor

This fan motor circulates the air through the refrigerator grille and cools the compressor and condenser coils. It also helps to evaporate extra water in the drain pan.

Order within the next 6 hrs and your part ships today!
Search Instructions
Keep searches simple, eg. "belt" or "pump". Need help?

Freezer Fan

  • Customer: Luis from College Station, TX
  • Difficulty: Really Easy
  • Time to Complete: 15 - 30 mins
  • Tools Required: Screw drivers, Socket set
  • 190 of 199 people found this instruction helpful
I removed two srews from the back panel inside fthe reezer compartment and the two that hold the air manifold/baffle? and pulled the baffle out. Then, I removed the two srews that hold the front part of the fan bracket behind the baffle and the back panel came out easily. Two more screws and one quick connect plug attached to the fan and I was done with remo... read more

Sticking Light Switch

  • Customer: Jonathan from Lilburn, GA
  • Difficulty: Really Easy
  • Time to Complete: Less than 15 mins
  • Tools Required: Pliers, Screw drivers
  • 87 of 99 people found this instruction helpful
I applied some tips learned by reading other reviews. So before I started I grabbed my trusty vise grip pliers and a small screw driver. I locked onto the switch actuator, the part that the refrigerator door pushes in, with the vise grips and pulled on it just hard enough to get the screw driver inserted in the right side to push in the catch clip so the swi... read more

evaporator fan making lots of noise

  • Customer: alex from rohnert park, CA
  • Difficulty: Really Easy
  • Time to Complete: 30 - 60 mins
  • Tools Required: Pliers, Screw drivers, Socket set, Wrench (Adjustable)
  • 79 of 86 people found this instruction helpful
the repair was really easy!!! took longer to put the little clip on the fan part than it was to install the whole moter and put everthing back together

save money do it yourself..... read more
